Automatic swing door operator
Automate your swing doors with high-performance, customised operators
Specifications
| Opening angle : | 95° to 120°, depending on configuration |
| Leaf width : | 720 to 1 500 mm, depending on configuration |
| Mechanism dimensions : | 102 x 136 x 650/760 mm, depending on configuration |
| Maximum panel weight : | Push up to 250 kg / Pull up to 160 kg |
| Installatio : | Surface-mounted on the door frame |
| Structure : | Aluminium |
Custom-made products and numerous options available; contact us!
Sales
Our teams assess your needs and constraints. They provide guidance to determine the appropriate solutions for each project.
Our prices include supply and installation.
Services
We support you throughout the entire lifecycle of your installation: commissioning, repair, renovation, and maintenance.
| CE – EN 61000-6-3/2 – EN 60335-1/-2-103 – EN13849-1 |
| EN16005 – EN 16005 IS |
| ANSI 156.19 – UL 325 |
| NFS 61937-1/2 – EN 1154 Fire Safety |
| OFG Origine France Guarantie : operators for swing doors |
Customize your automatic swing door operator
Configurations
One swing door opener for a wide range of applications.
Its flexibility allows for numerous configurations :

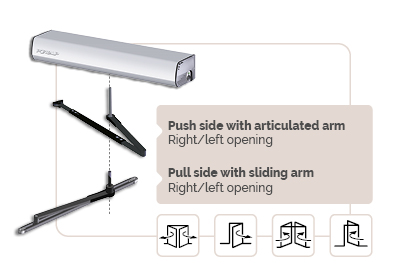

- Push arm version with hinge, right/left opening
- Pull arm version with sliding mechanism, right/left opening
- Fire door push arm version, EN3 to EN6 force according to NFS 61937-1-2
- Master-slave operation for double doors
It adapts to all situations with telescopic arms and axis extensions, without requiring structural modifications.
Features
- High power and traffic management
- Building and occupant safety
- Smooth and gentle opening for vulnerable individuals
- Comfort, hygiene, and easy access in sensitive areas
Three operating modes
- Fully Automatic: Effortless, contact-free opening
- Power Assisted: The operator acts as a door closer to assist manual opening
- Push and Go: A simple push triggers the opening
Daily Convenience
- Integrated mode selector: Automatic/Open/Manual
- Door status indication
- Reset button
Settings and adjustments
The Naviblu console provides extensive configuration options for inputs/outputs. Its large, bright screen displays door status and signals any operational faults.
Security
Various systems enhance safety for people and buildings according to current regulations :
Building safety
Various locking devices can be connected to the operator, including motorized locks, electric strikes, magnetic locks, etc.
Emergency protection for individuals
Emergency exit:
Suitable for emergency exit doors in accordance with regulations for public access establishments (ERP).
Fire safety:
The ISO3 fire door operator is certified for use on fire-resistant doors, with adjustable closing force EN3 to EN6.
User protection
EN16005 :
Compliant detectors complete the installation to prevent impact or pinch hazards during door movement.
Low-Energy mode:
Allows operation without safety detectors, with a slow, non-injurious closing motion.
Controls and options
Various opening control systems are available based on :
- Desired use (global or controlled access)
- Access issues (high traffic, vulnerable individuals)
- Environmental constraints (hygiene, controlled atmosphere, windy areas, etc.)
Naviblu Console
Mode selection, settings, diagnostics
Keyed Mode Selector
Contactless Switch
Touch-sensitive opening control
